INDUSTREX HPX-1 Plus Digital System

INDUSTREX HPX-1 PLUS DIGITAL SYSTEM

INDUSTREX HPX-1 Plus Digital System

The INDUSTREX HPX-1 Plus is ideal for a lab environment where high-resolution is critical with adjustable PMT and Laser Power to fine tune every image for optimum capture every time. The HPX-1 Plus also has the capability to handle extra-long plates – ideal for aerospace applications. Also accepts custom cut plates and rigid cassettes. 30% faster throughput on long saturated plates, improved imaging plate transport system, higher mechanical reliability and INDUSTREX software make the HPX-1 Plus an award-winning industry leader in digital imaging.
Download Product Brochure Contact Us
INDUSTREX HPX-1 DIGITAL SYSTEM

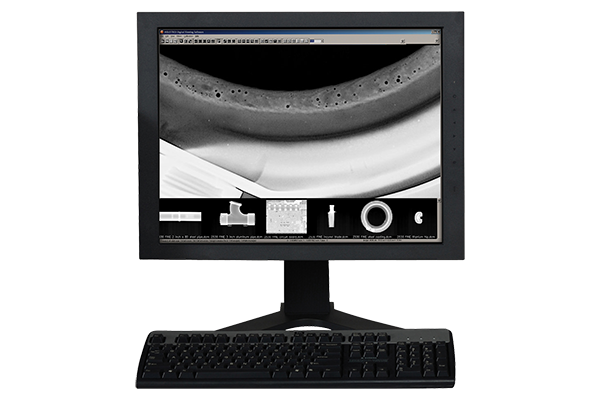

INDUSTREX Digital Viewing Software

Powerful Software

INDUSTREX Digital Viewing Software incorporates industry-leading image analysis tools, file sharing and storage management features. Our modular architecture is an all-in-one software suite that eliminates the need to purchase add-on modules for both CR and DR image acquisition.

Testimonial

Aztech Materials Capitalizes on Growth with the INDUSTREX HPX-1 Plus CR System

"A lot has changed since Aztech opted to go digital, said Travis McDonough, Operations Manager. Traditionally, we had a mobile dark room. Sometimes when doing a concrete X-ray, we would be on a lift in a tower that takes an hour to get where we were actually X-raying. It was a slow process."

Enter the HPX-1: A Game-Changer in Productivity

"Our throughput rates have increased dramatically with less time running back and forth for image processing, it's been a total game-changer."

Nueva Aeronáutica Reaps Benefits of Digital Radiography

Nueva Aeronáutica addresses clients’ growing needs, including the archival of X-ray shots—the company on average takes more than 3,000 images a year—it has embraced the accuracy and affordability of digital radiography with the INDUSTREX HPX-1 Plus. “The transition was easier than he imagined, Pineda said.”

HPX-1 Plus
INDUSTREX HPX-1 Digital System

Handles the Longest Plates in the Industry

The HPX-1 Plus is capable of running extra-long imaging plates up to 85 inches (216 cm). The system has a wide dynamic range with high sensitivity, making it ideal for almost any type of imaging application. Whether you’re using a gamma or X-ray source, the HPX-1 Plus’ high sensitivity can help reduce shot time.

Features and Specifications

Built for NDT
  • Multiple fans and filters maintain positive internal air pressure to keep dust, debris unfiltered air out of the system
  • Integrated brushes and seals keep environmental light and dirt out
  • Rubber feet absorb ambient vibrations in the field
  • Withstood 100 g impact force drop test and variable amplitude and frequency vibration test
Ultra-High Image Quality
  • Pixel Size 25 µm, 35 µm, 50 µm, 100 µm
  • Spatial Resolution 50 µm (10 lp/mm)
  • Laser Spot Size: 20μ (measured at 85% of peak)
  • Adjustable PMT and Laser Power to fine tune every image for optimum capture every time.
Image Plate Flexibility
  • Capable of handling single, multiple or custom cut plates.
  • Hard cassettes and long plates without special feed guides.
  • Plate transport system minimizes contact with the imaging plate for longer plate life.
Workflow Improvements
  • Rapid job setup – operate in a windows or DICONDE mode - whichever best fits your workflow requirements
  • Shot time improvement - shoot faster, radiate less and keep your source longer.
  • HPX-1 Plus has a halogen erase system for faster throughput.
  • Filter preset function so desired filters already applied for quick approvals.
