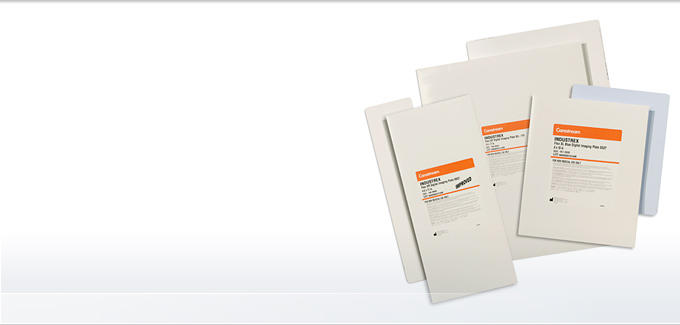

Carestream Industrex Flex GP, HR and XL Blue Digital Imaging Plates
Carestream INDUSTREX Digital Imaging Plates are a natural fit for computed radiography in NDT applications. Our digital imaging plates offer the flexibility of film without the need for wet processing, allowing you to capture and read images quickly and easily, both in the field and in the lab.
- Optimize captured images if needed and store or share them digitally.
- XL Blue digital imaging plate features approximately 35% higher resolution* than our Flex HR plate.
* Depending on shot quality, spatial frequency and beam conditions and energy
- Features
- Specifications and Technical D
- Available Sizes
Features
- Flexible – Wrap around most shapes.
- Sharp – Better resolution than high-speed films, and a suitable replacement for many applications.
- Available in Multiple Sizes – To cover a wide range of applications.
- Portable – With the Carestream INDUSTREX HPX-1 Plus Digital System, image capture in remote areas is easier than ever.
- Versatile – Use in a rigid or flexible cassette.
- Efficient – Phosphor plates can be erased and reused thousands of times, require less exposure than film, and provide faster image access.
- Certified – When used with Carestream INDUSTREX HPX-1 Plus Digital Systems, all plates meet requirements for the highest system class: EN 14784-1 and ASTM E 2446.
Specifications and Technical D
Compatible CR Equipment:
- Carestream INDUSTREX HPX-1 Plus Digital System
- ACR2000/2000i
Available Sizes
|
FLEX GP |
FLEX HR |
FLEX XL Blue |
RESOLUTION |
GENERAL PURPOSE |
HIGH RESOLUTION |
ULTRA HIGH RES |
SIZE |
CATALOG NUMBER |
||
3.5 x 10 Inch |
• |
8094922 * |
1012699 |
3.5 x 17 Inch |
• |
1904267 * |
1012723 |
4.5 x 10 Inch |
1004266 |
1680214 |
1012624 |
4.5 x 17 Inch |
8584534 |
1466945 |
1012608 |
5 x 7 Inch |
1880723 |
8491615 |
1012681 |
7 x 17 Inch |
1355478 |
1848688 |
1012640 |
8 x 10 Inch |
8520454 |
1775576 |
1012632 |
10 x 12 Inch |
8640344 |
1174424 |
1012574 |
14 x 17 Inch |
1008564 |
8360521 |
1012665 |
14 x 36 Inch |
8908204 |
1434257 |
1012590 |
14 x 51 Inch |
1432772 |
• |
• |
14 x 60 Inch |
1124460 |
8082596 |
1012657 |
14 x 85 Inch |
8542276 |
• |
• |
70 mm x 20.3 cm |
• |
• |
1012731 |
70 mm x 25.4 cm |
• |
8802324 * |
1012707 |
70 mm x 43 cm |
• |
8348641 * |
1012715 |
70mm x 8 Inch |
• |
8002230 |
• |
70 mm x 13 Inch |
• |
• |
1012764 |
70 mm x 24 Inch |
• |
1006105 |
1012756 |
70 mm x 36 Inch |
• |
1004746 |
1012749 |
