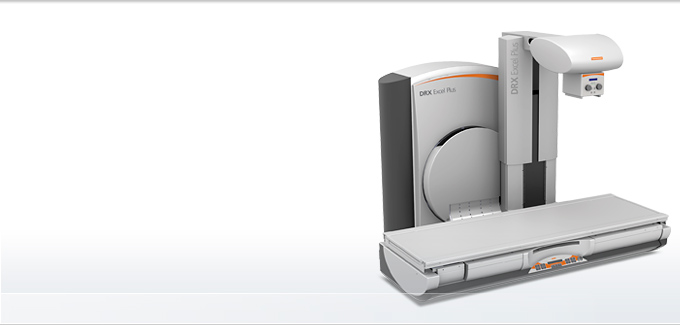

DRX-Excel Plus

Total Flexibility

Fluoroscopy technology has been optimized specifically for large and mid-size hospitals and medical centers with the CARESTREAM DRX-Excel Plus System. It combines both fluoroscopy and general radiology capabilities in one compact unit. It also delivers accelerated workflow, high-resolution images and a wide range of exams.

  • A conventional configuration, utilizing film or CR cassettes or our wireless DRX-Detector for radiology and an image intensifier for the fluoroscopy exam, or
  • A dRF configuration, with a single flat-panel digital detector for both RAD and fluoroscopy.
DRX-Excel Plus (video)

  • Features
  • High Performance Options

Features

  • Extensive SID capability exceeds competitors, acquiring images at any distance between 110 to 180cm
  • Table features a 265kg weight capacity with NO limitations on movements
  • +/- 90 degree tilting to enable all exam types
  • Table lowers to 48cm (19inches) making it easily accessible for wheelchair patients
  • Full system access from every side for easier patient transfer and exam versatility
  • Fully motorized, easy-to-use compression for abdominal and other exams
  • Control system operation remotely, or right at patient’s side
  • Motorized movement of tube and column maximizes speed and convenience
  • Offered with either an Image Intensifier* with high resolution CCD camera that maximizes image quality during fluoroscopy or a Flat Panel Detector that offers high image quality for either fluoroscopy or general radiology images
  • Auto positioning, as a function of extensive anatomical programs, facilitates faster exam set-up times
  • Patient overage of 201cm allows full exploration of even very tall individuals without repositioning
  • Relaxing ambient lighting and selectable music maximize patient comfort
  • DAP measurements allow tracking of the exact radiation dose received by each patient
  • Optional DRX-1 detector offers the power of the X-Factor and allows easy positioning for cross-table and weight-bearing exams

* The Image Intensifier is not an available option on the DRX-Excel Plus in the US and Canada.

  DRX-Excel Plus

High Performance Options
