HPX-DR Non-Glass DR Detector

 HPX-DR 3543 PE NON-GLASS DR DETECTOR

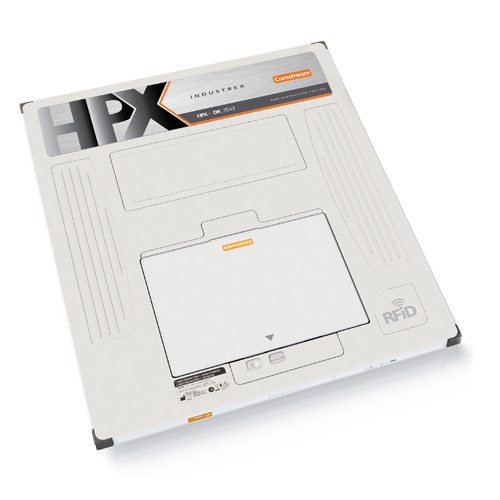

HPX-DR 3543 PE Non-Glass, Large Format Detector

The HPX-DR 3543 PE Non-Glass detector incorporates a tougher material instead of glass for maximum durability against the rigors of NDT field work. It virtually eliminates costly repairs for broken glass and comes with a 2-Year warranty and a free loaner (US and Canada) so you can reduce downtime and the expense of purchasing redundant detectors.
Download Product Brochure Contact Us
HPX-DR Non-Glass DR Detector
HPX-DR Non-Glass DR Detector
HPX-DR Non-Glass DR Detector
INDUSTREX Digital Viewing Software

INDUSTREX Digital Viewing Software

INDUSTREX Digital Viewing Software incorporates image analysis tools, file sharing and storage management features. Our modular architecture is an all-in-one software suite that eliminates the need to purchase add-on modules for both CR and DR image acquisition.

Performance Accessories

Optional protective cover for lab use increases detector load limit up to 340 kg. (750 lbs.) and mount kit with pipe cleats to reduce stress on the detector, especially for pipeline imaging.
HPX-DR Non-Glass Detector Accessories

Features and Specifications

Durability
  • Non-glass design eliminates costly repairs of breaking glass on the job
  • Heavy-duty shielding designed specifically for high exposure NDT applications
  • Protective, weatherproof enclosure – perfect for remote fieldwork
  • Comes with a 2-Year warranty and FREE loaner (US and Canada only) for maximum uptime and cost of back-up detectors
Built for NDT
  • 139 μm pixel pitch for high-resolution imaging
  • Large format (350 x 430mm) and thin profile (14.7mm)
  • Close-to-edge imaging capability
  • Robust wireless connectivity
  • Powerful lithium-ion batteries with battery ‘hot-swap’ to keep the detector running during battery change
Workflow
  • Reduce exposure time and still capture the sensitivity needed for your critical inspection task.
  • Quick start up, calibration, and image display after acquisition – get images in seconds for immediate analysis.
  • INDUSTREX software can be set to what best fits your workflow - Windows or in full DICONDE mode.
  • Shoot faster, radiate less and keep your source longer. It’s possible for HPX-DR 3543 PE Non-Glass detector to reduce exposure time.
  • Preset the system so images appear with the desired filters already applied and approve in one click. Make customized multi-line or single shot-style reports in seconds.

Contact Us

Exposure Interface Box (EIB)

  • An INDUSTREX Digital System accessory for DR.
  • Provides a standalone battery powered Wi-Fi access point to HPX-DR Detectors.
  • Optionally provides a communications interface to support select Golden pulse generator models.
  • The pulse generator interface enables timing coordination of the HPX-DR Detector image capture with the Golden X-ray pulse generation.
NDT EIB

Performance Accessories

Optional protective cover for lab use increases detector load limit up to 340 kg. (750 lbs.) and mount kit with pipe cleats to reduce stress on the detector, especially for pipeline imaging.
HPX-DR Non-Glass Detector Accessories
2 year warranty

Comes with a 2-year warranty and free loaner program!

  • We're so confident in the design and reliability of our new durable detector that we're offering a two-year warranty
  • If your detector ever does need service, we offer a loaner service (US and Canada only) to minimize downtime and avoid expense of purchasing a back-up detector

Contact Us
